Oval connector.
Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted – this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.
Tech Specs
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|
| 10mm Steel Oval Screwgate | C452 | 56 x 106mm | 172g | 30kN | 12kN | 10kN | 16mm | EN362:2004 B |

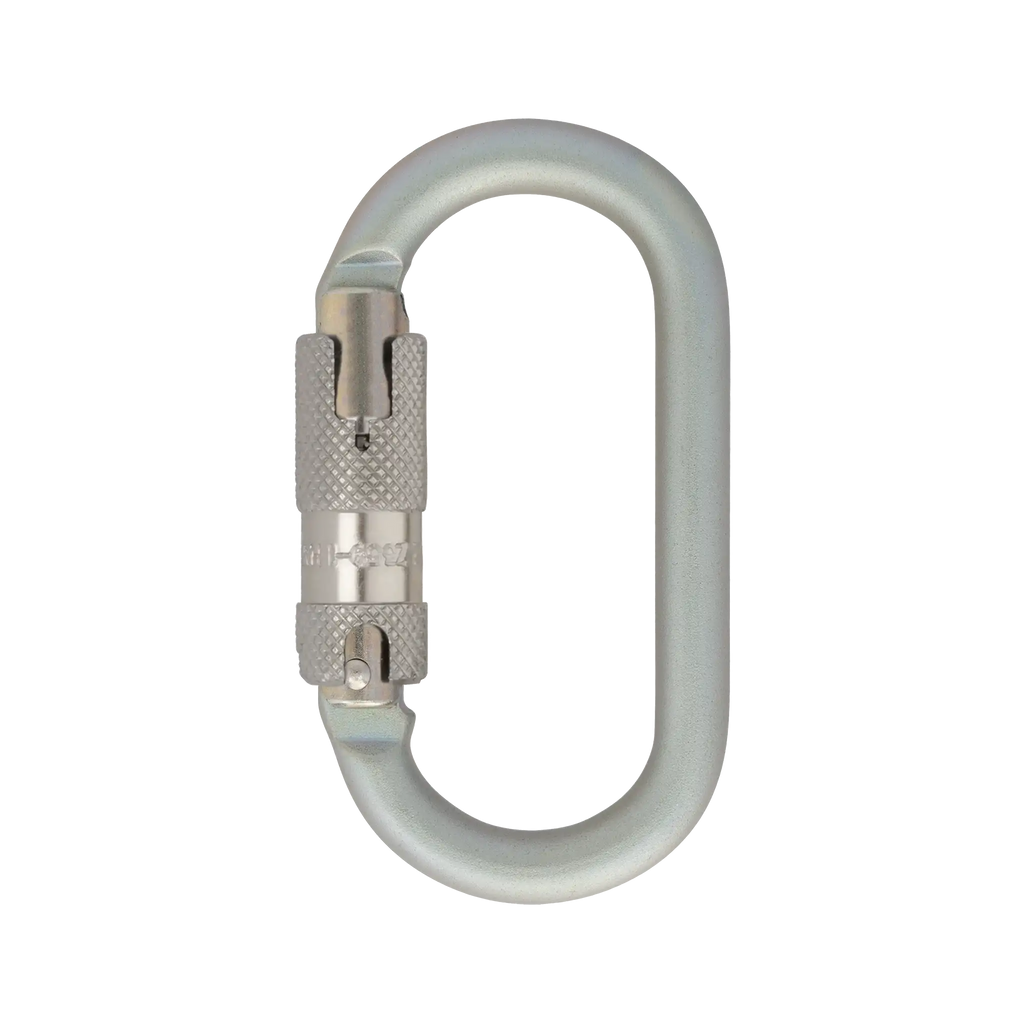

| 10mm Steel Oval Kwiklock | C453 | 56 x 106mm | 184g | 30kN | 12kN | 10kN | 18mm | EN362:2004 B |

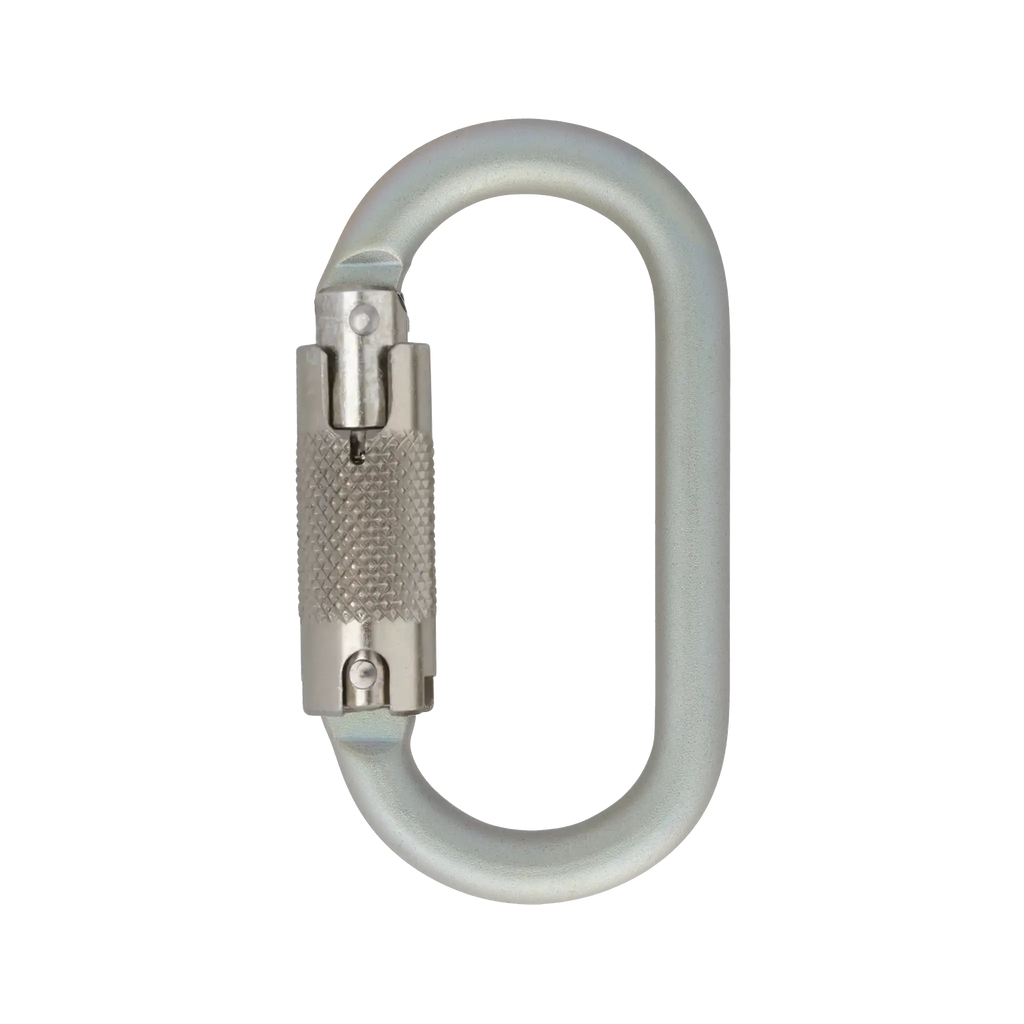

| 10mm Steel Oval Locksafe | C457 | 56 x 106mm | 189g | 30kN | 12kN | 10kN | 18mm | EN362:2004 B |
