Propel

Pre-release information.
Shipping August 2024.

Lightweight, strong and compact pulley. Read more
Documents

Declaration of Conformity

More details

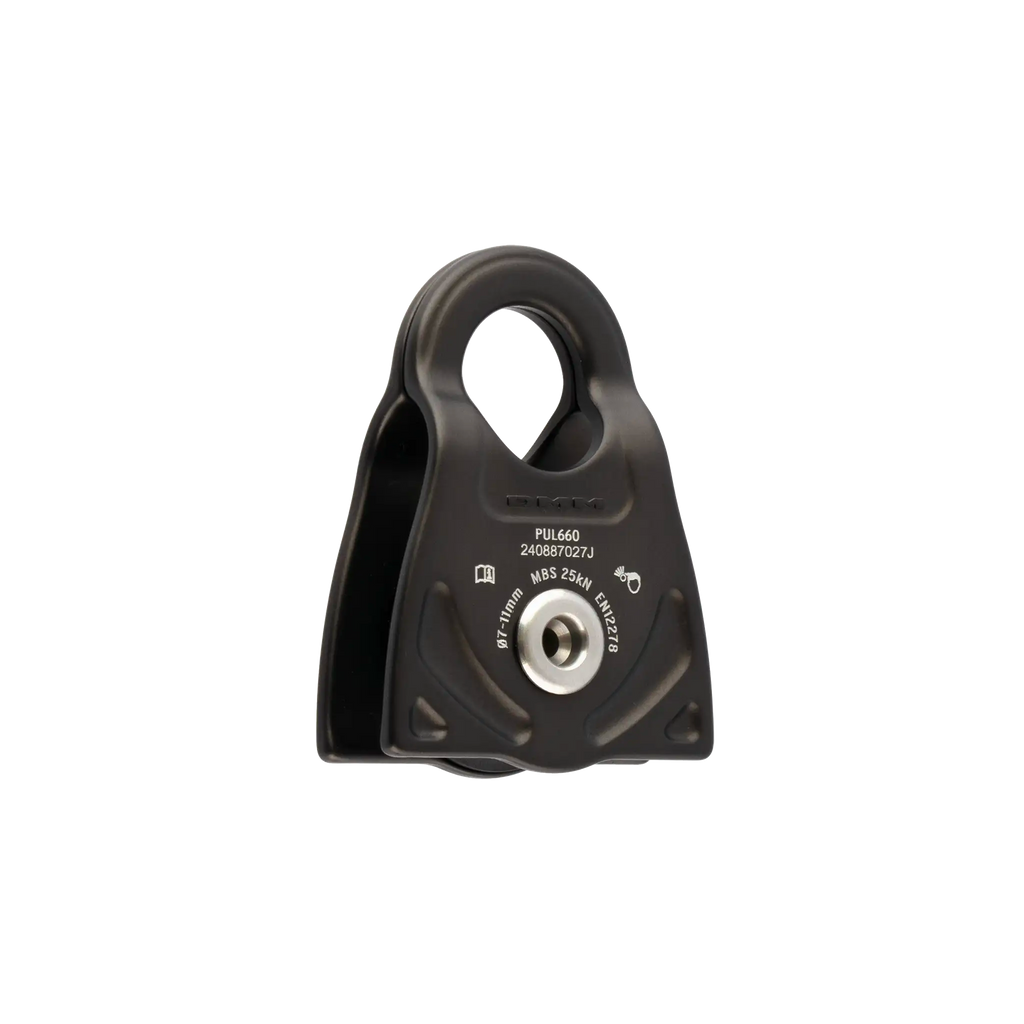

Lightweight, strong and compact, this pulley uses sealed ball bearings for excellent efficiency. The extensions on the hot forged side plates not only protect the rope and sheave when running near surfaces, but also have thickened tabs designed to optimally tend a prusik for progress capture. These features make it an ideal pulley to use in hauling systems for smaller loads.

Features

  • Ultra-compact pulley
  • Sealed ball bearings for high efficiency and low maintenance
  • Attachment eye is large enough to allow for carabiner to rotate for easier system set up
  • Hot forged smooth fairleads and edges are rope and textile friendly
  • Prusik minding tabs allow pulley to be easily built into progress capture hauling systems
  • Forged Prusik minding tabs have an increased width compared to simple plate pulleys which give better engagement of the Prusik
  • Wider side profile protects the rope when running close to surfaces
  • Connects directly in with textile components for extra versatility
  • Compatible with ropes up to 11mm diameter
  • Lightweight and strong with a 25kN MBS and 5kN WLL
  • Swinging side plates for easy installation

Tech Specs

Product Name Product Code Colour MBS WLL Dimensions Weight Rope Diameter Certification
Propel Red/Grey PUL660 Red/Matt Grey 25kN 5kN 72 x 54 x 24mm 73g 11mm Max EN12278:2007
Propel Matt Grey PUL660MG Matt Grey 25kN 5kN 72 x 54 x 24mm 73g 11mm Max EN12278:2007
×
