Impel

Pre-release information.
Shipping August 2024.

Lightweight, strong and compact pulley.
Read more

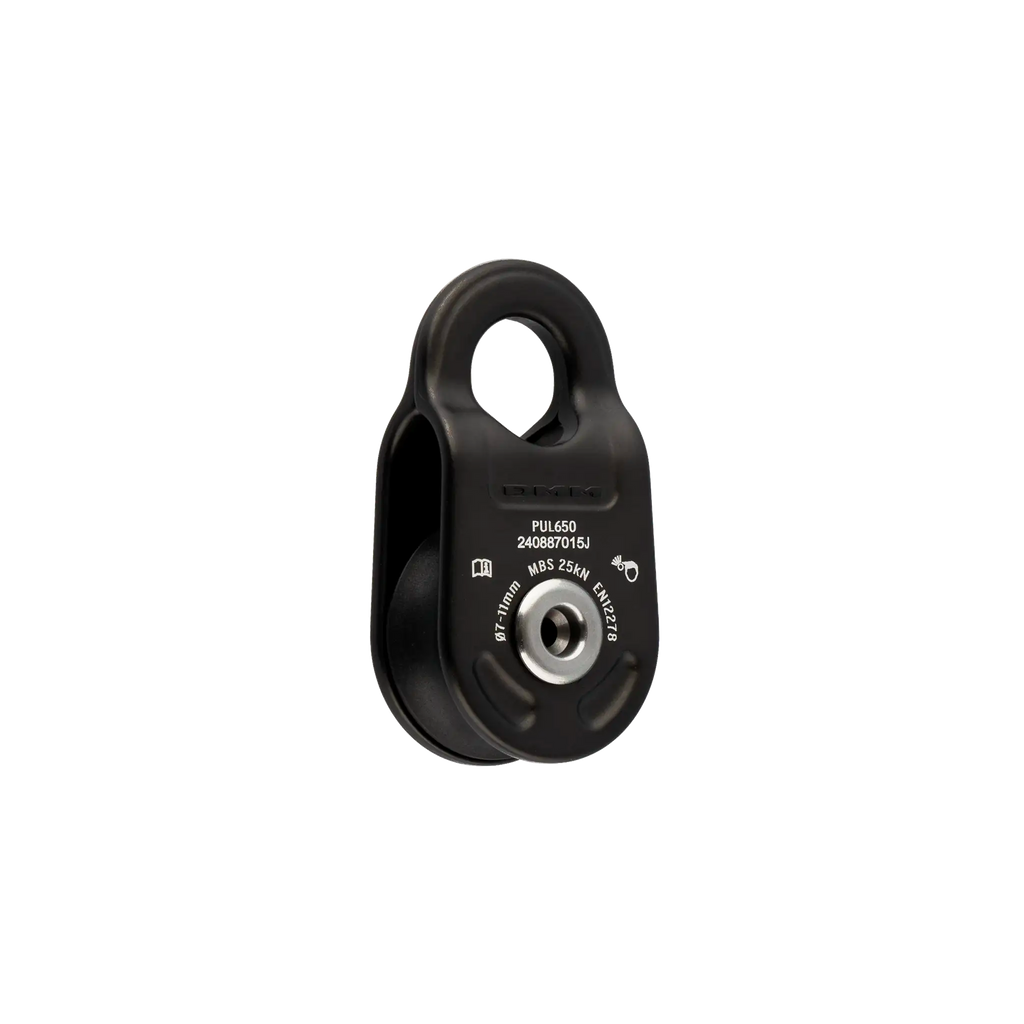

Lightweight, strong and extremely compact, this pulley uses sealed ball bearings for excellent efficiency and smooth hot-forged side plates protect the sheave. It is an ideal pulley to have as part of personal ascent, positioning and in your day-to-day tasks.

The Impel's straight sides means a hitch tends nicely against it when used as part of a lanyard system.

Features

  • Ultra-compact pulley
  • Sealed ball bearings for high efficiency and low maintenance
  • Hot forged smooth fairleads and edges are rope and textile friendly
  • Can connect directly with textile components for extra versatility
  • For use with ropes up to 11mm diameter
  • Lightweight and strong with a 25kN MBS and 5kN WLL
  • Swinging side plates for easy installation

Tech Specs

Product Name Product Code Colour MBS WLL Dimensions Weight Rope Diameter Certification
Impel Red/Grey PUL650 Red/Matt Grey 25kN 5kN 69 x 35 x 24mm 62g 11mm Max EN12278:2007
EN12278:2007
Impel Matt Grey PUL650MG Matt Grey 25kN 5kN 69 x 35 x 24mm 62g 11mm Max EN12278:2007
×
