Zodiac

€28,99

Offset D strong connector.

A very strong offset D connector with a 32kN major axis that is ideal for rescue loads and heavy duty rigging. The clean nose gate uses our patented Taperlock design and our toughest barrel to give very strong gate open and side face strengths. Recommended for general use where weight saving and high strength are important.

FEATURES

Offset D for ergonomics

The Offset D connector shape takes the optimal loading of a D-shaped connector but with an increased internal volume at one end - the basket. This adds to the positivity in the hand, especially when wearing gloves.

Keylock clean nose for snag free connection

DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Captive bar option for security

Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.

Tech Specs

Product Name Product Code Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Zodiac Titanium Locksafe A827 66 x 114mm 79g 32kN 12kN 12kN 18mm EN362:2004 B
EN12275:2013 B
UIAA121:2009

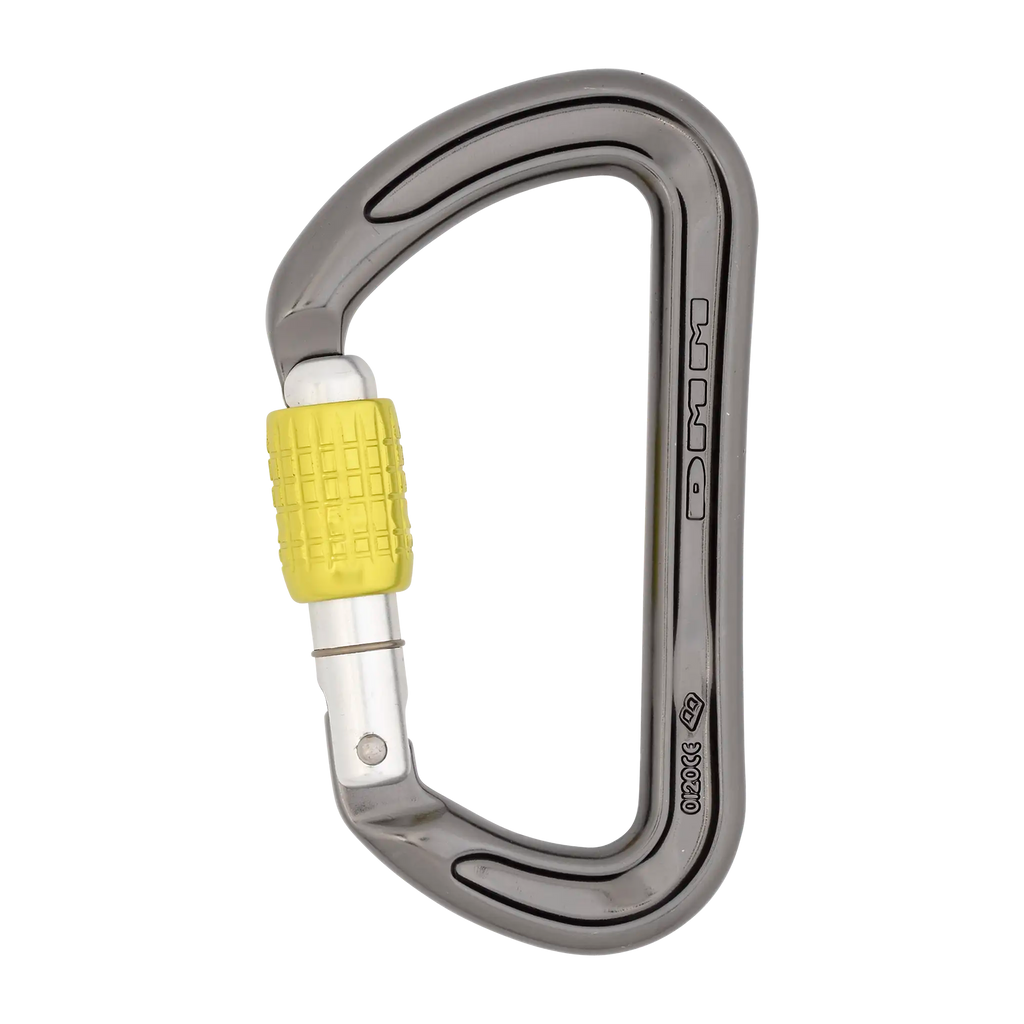

Zodiac Titanium Screwgate A822 66 x 114mm 75g 32kN 12kN 12kN 19mm EN362:2004 B
EN12275:2013 B
UIAA121:2009
Zodiac Titanium Kwiklock A823 66 x 114mm 79g 32kN 12kN 12kN 18mm EN362:2004 B
EN12275:2013 B
UIAA121:2009

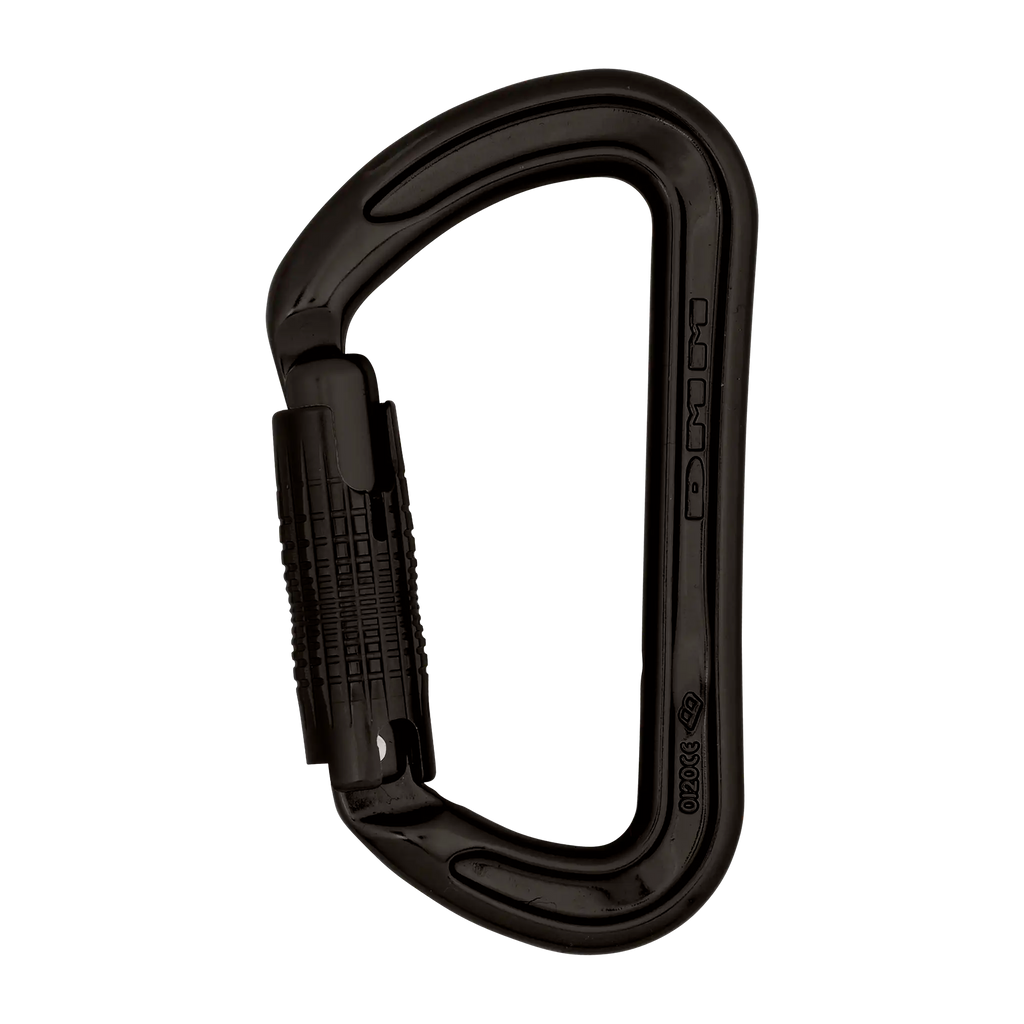

Zodiac Matt Grey Locksafe A827MG 66 x 114mm 79g 32kN 12kN 12kN 18mm EN362:2004 B
EN12275:2013 B
UIAA121:2009

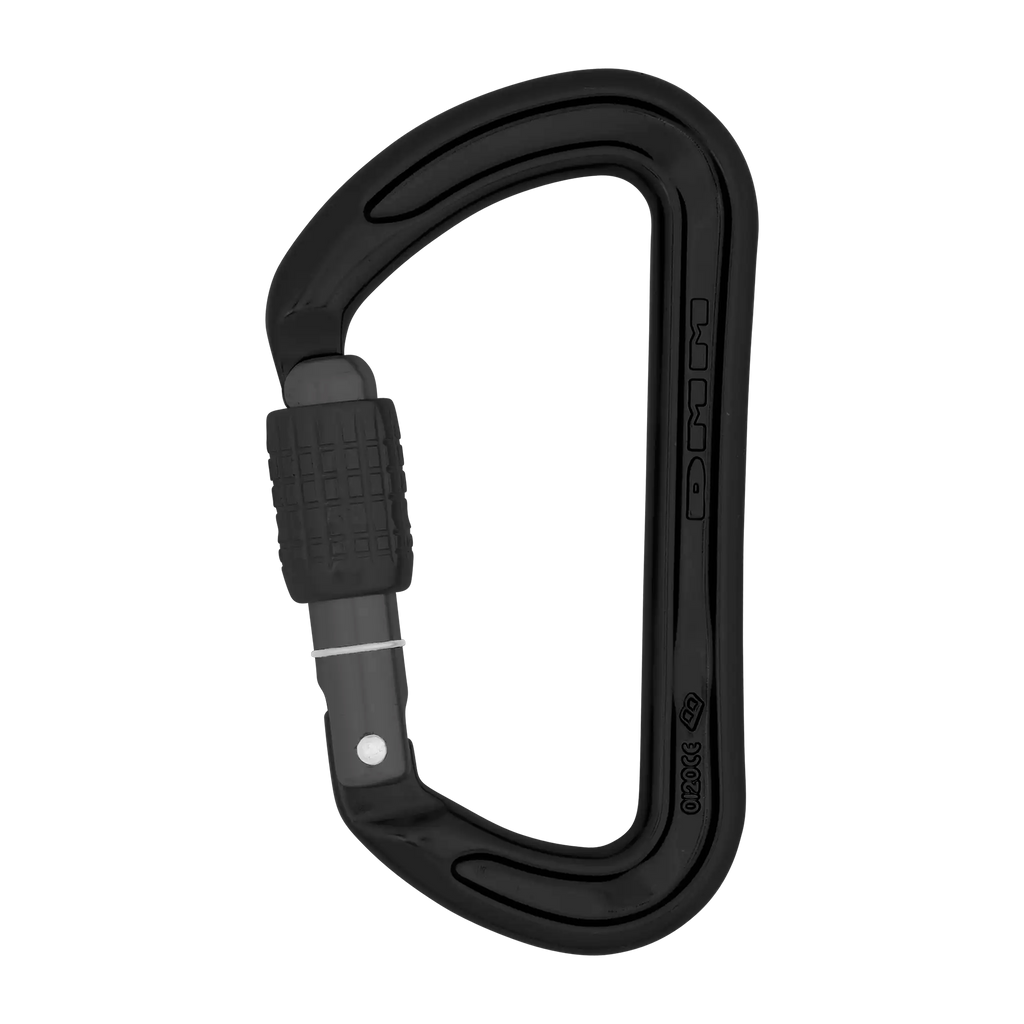

Zodiac Matt Grey Screwgate A822MG 66 x 114mm 75g 32kN 12kN 12kN 19mm EN362:2004 B
EN12275:2013 B
UIAA121:2009

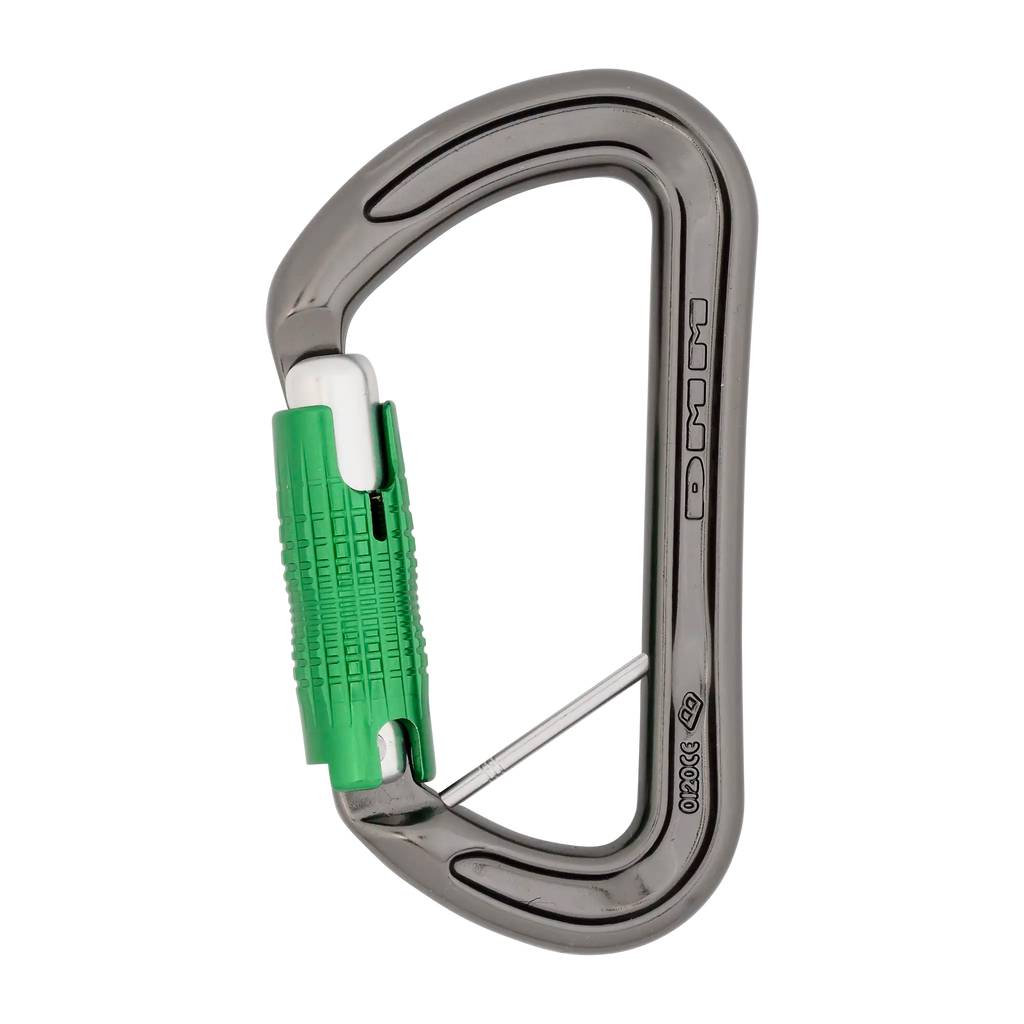

Zodiac Titanium Captive Bar Locksafe A827CB 66 x 114mm 79g 32kN 12kN 12kN 18mm EN362:2004 B/T
EN12275:2013 B/T

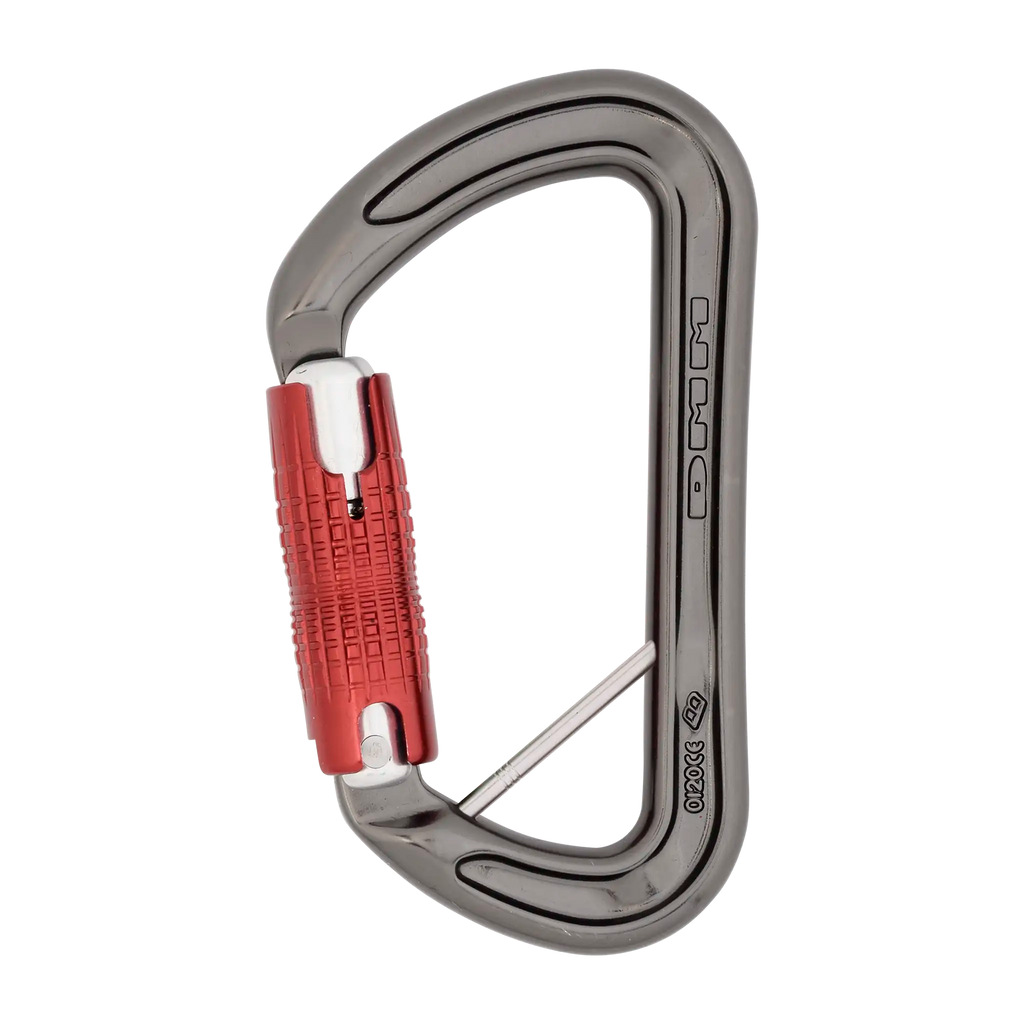

Zodiac Titanium Captive Bar Kwiklock A823CB 66 x 114mm 79g 32kN 12kN 12kN 18mm EN362:2004 B/T
EN12275:2013 B/T
×
