Tried & tested.

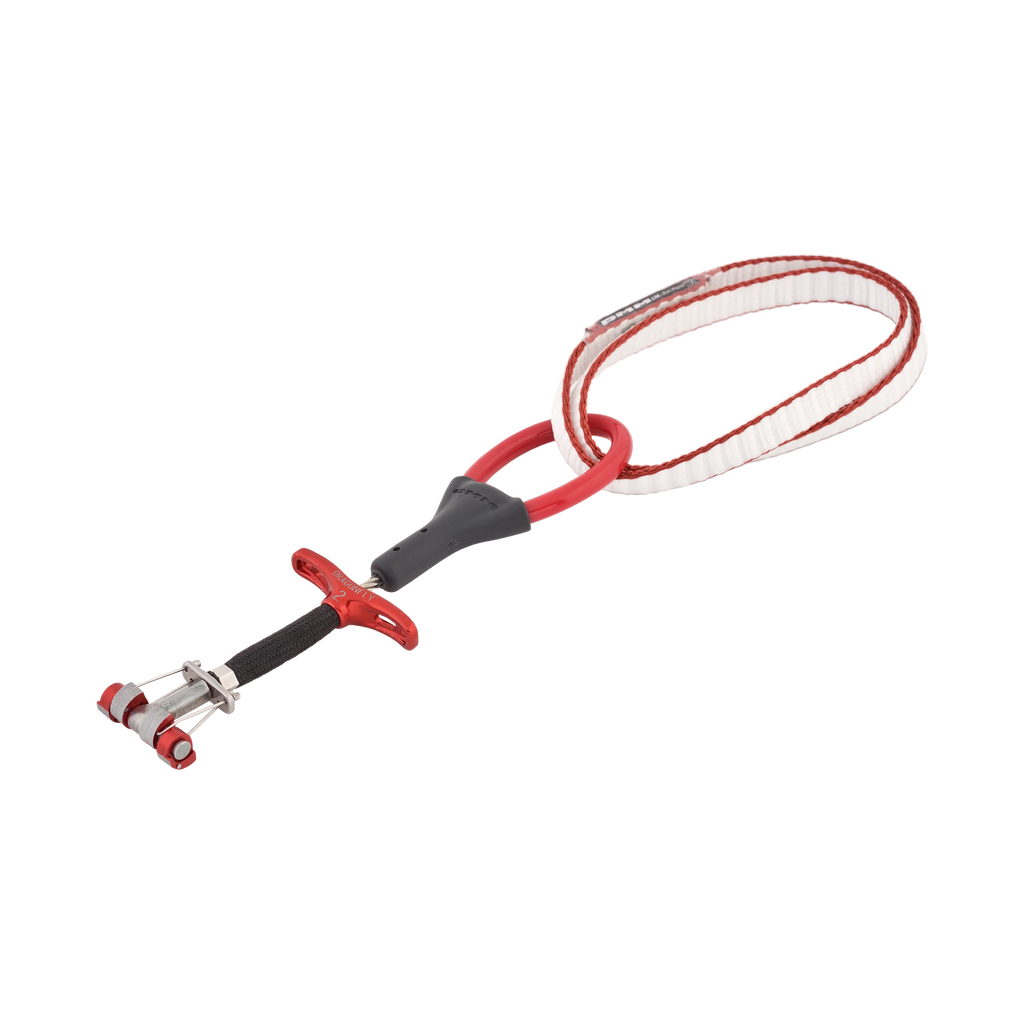

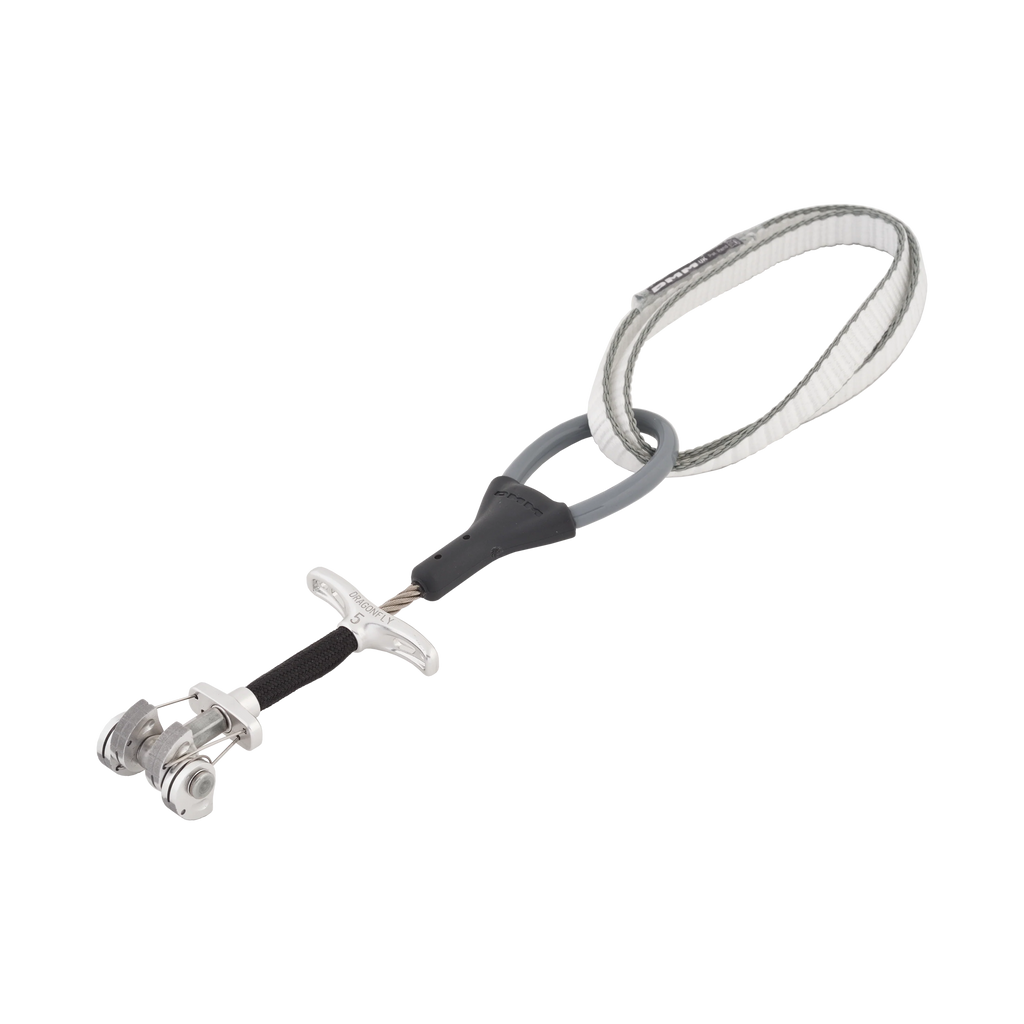

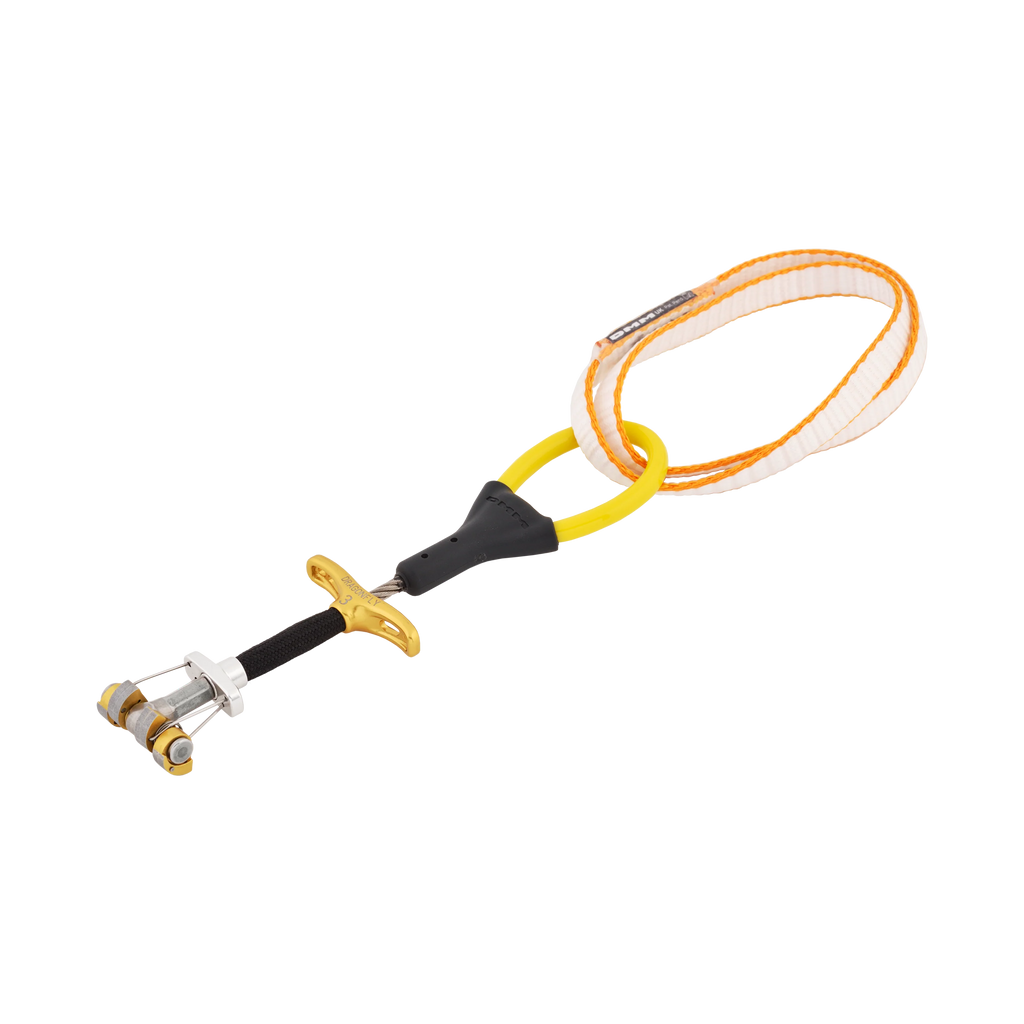

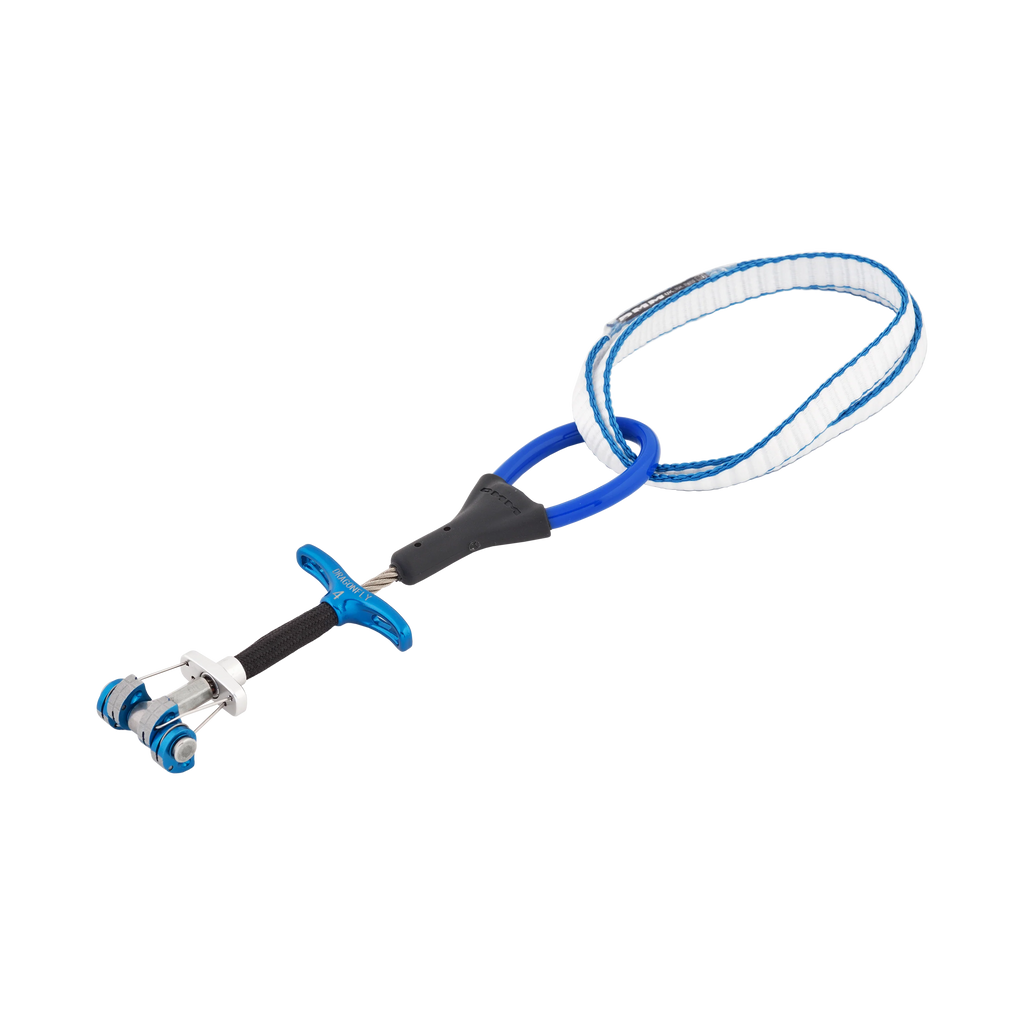

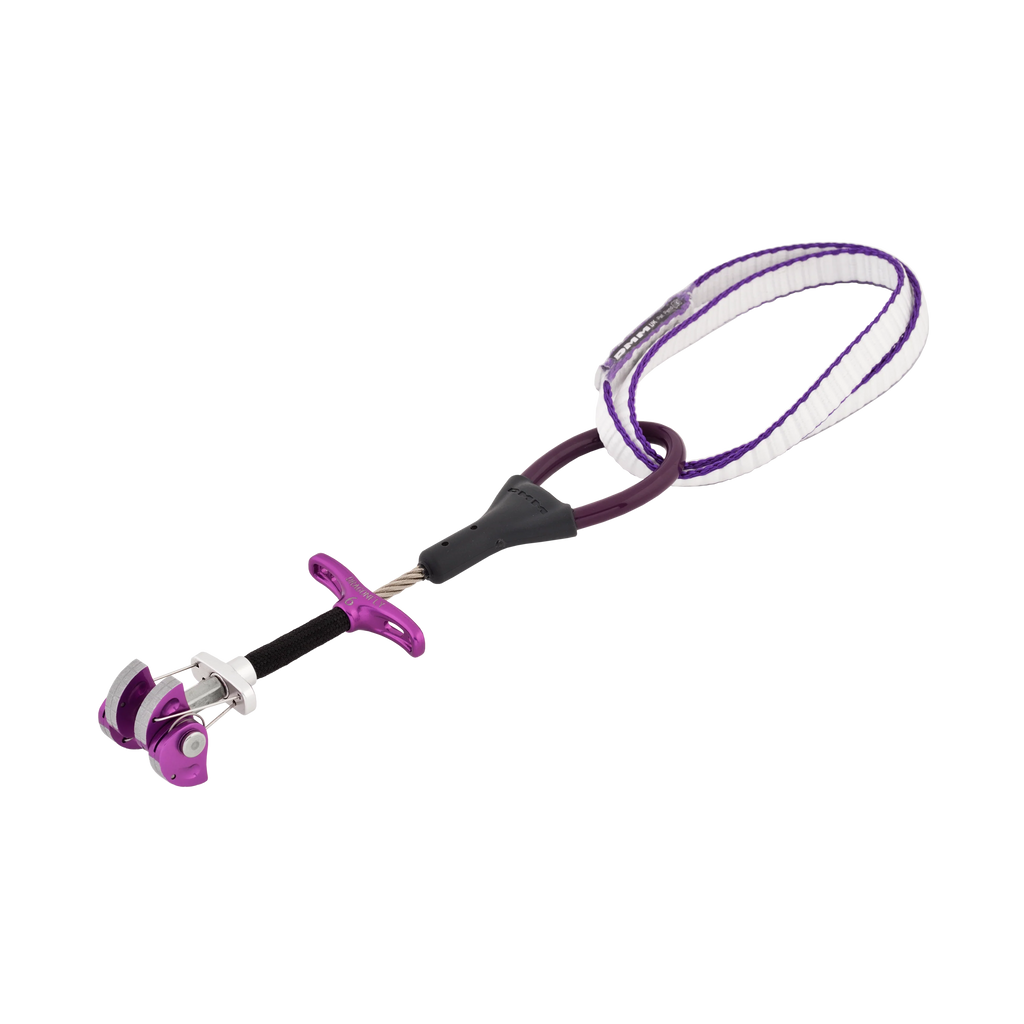

Dragonfly Micro Cams provide versatile protection for narrow cracks and pockets. The size 1 Dragonfly is our smallest certified climbing cam. The six cams in the range cover placements from 7.8mm – 28.3mm.
The same camming angle of 13.75°, as used with our Dragons, provides the optimum balance of holding power and range. You will appreciate the holding power of the TripleGrip lobes with their ‘raw alu’ surface, particularly on smooth rock types such as slate and limestone. The narrow head width and compact trigger allow the cams to be placed deep in small pockets.
We have also introduced the Dragonfly Offsets to the celebrated Dragonfly Cam range, which alongside the Dragon Cams create the ultimate cam family.
Tech Specs
| Cam Size | Product Code | Colour | Active Strength | Passive Strength | Weight | Range | Certification |
|---|---|---|---|---|---|---|---|
| 1 | A7551A | Green | 6kN | No passive strength | 55g | EN12276:2013 | |
| 2 | A7552A | Red | 6kN | No passive strength | 56g | EN12276:2013 | |
| 3 | A7553A | Gold | 8kN | No passive strength | 65g | EN12276:2013 | |
| 4 | A7554A | Blue | 8kN | No passive strength | 67g | EN12276:2013 | |
| 5 | A7555A | Silver | 9kN | No passive strength | 70g | EN12276:2013 | |
| 6 | A7556A | Purple | 9kN | No passive strength | 73g | EN12276:2013 |
