Professional roller.
A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
Tech Specs
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | WLL | Sheave Diameter | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|
| Revolver Rig Screwgate | A5821CB | 75 x 161mm | 196g | 25kN | 5kN | 36mm | 23mm | EN362:2004 B/T EN12278:2007 |

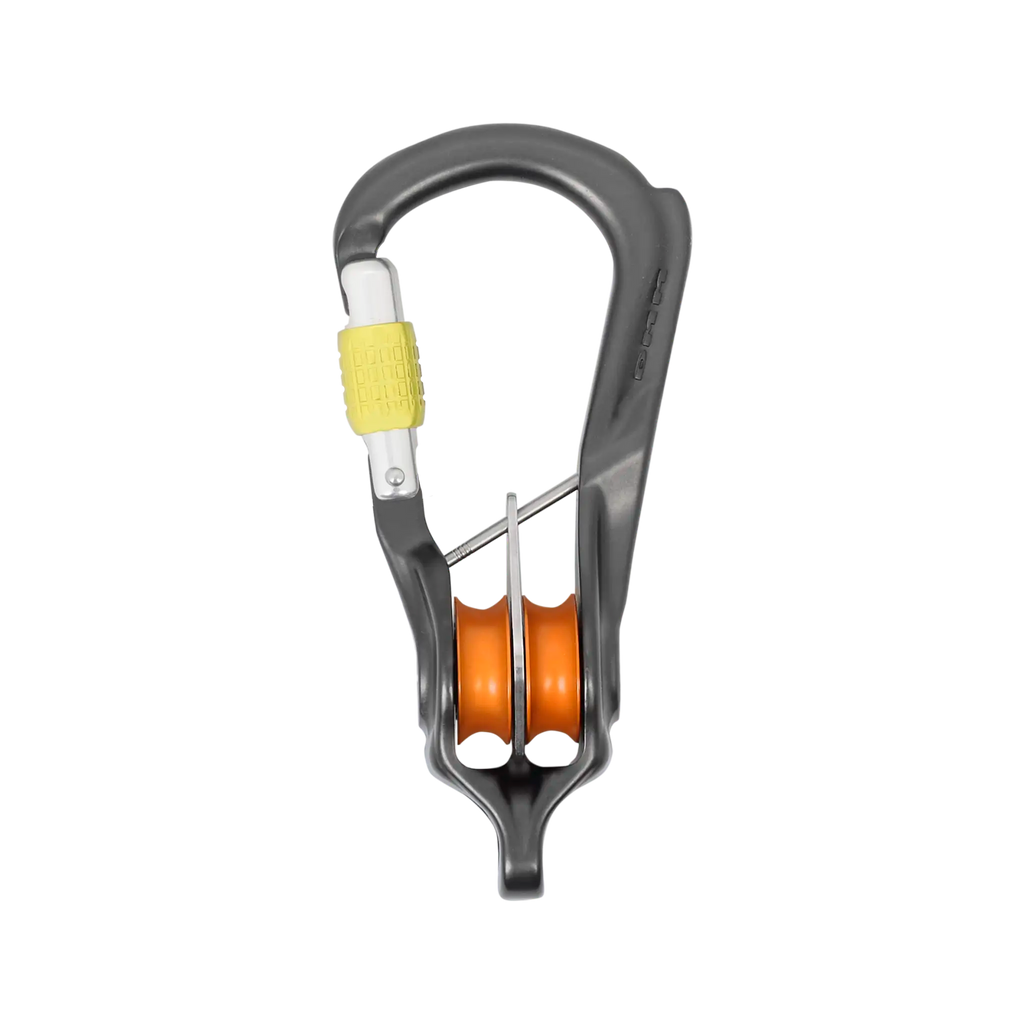

| Revolver Rig Screwgate Twin | A5822CB | 75 x 161mm | 212g | 25kN | 5kN | 31mm | 23mm | EN362:2004 T EN12278:2007 |

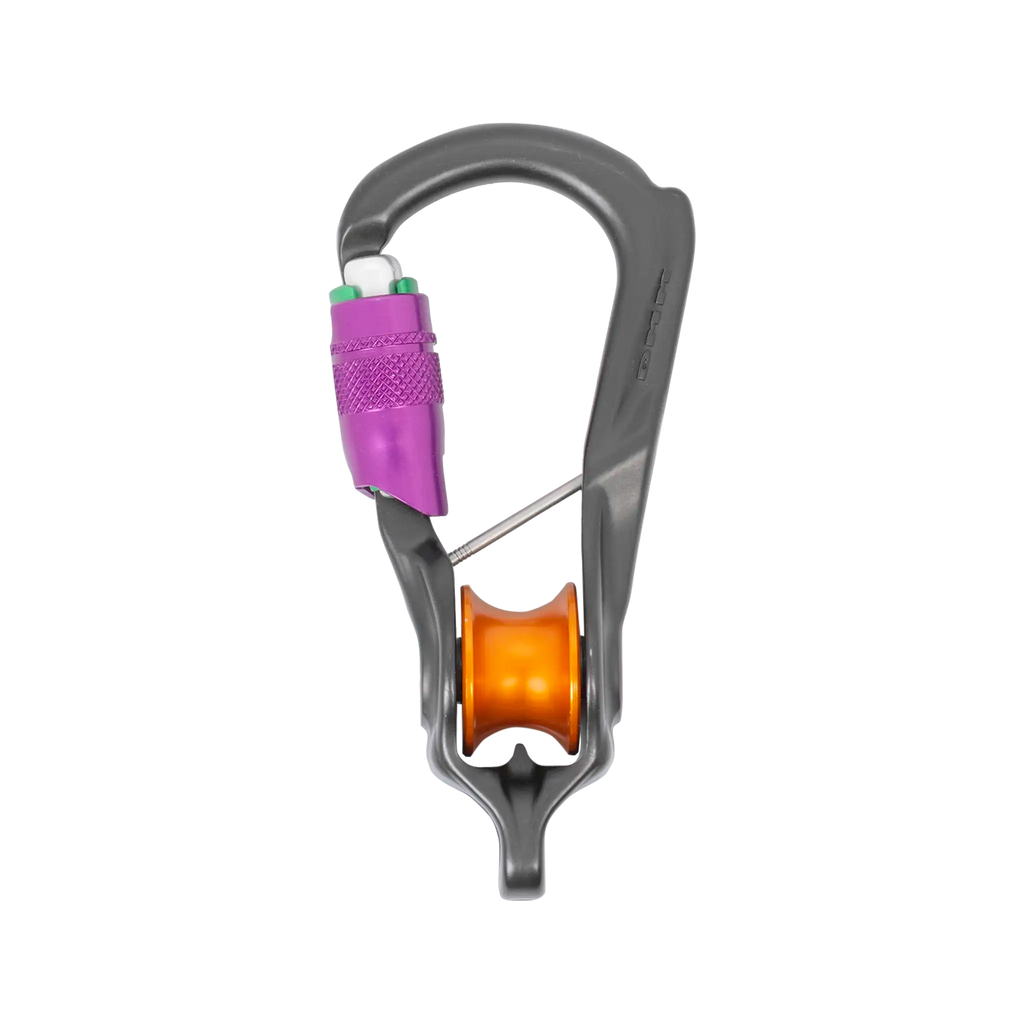

| Revolver Rig Durolock | A5841CB | 75 x 161mm | 213g | 25kN | 5kN | 36mm | 21mm | EN362:2004 B/T EN12278:2007 |
| Revolver Rig Durolock Twin | A5842CB | 75 x 161mm | 226g | 25kN | 5kN | 31mm | 21mm | EN362:2004 T EN12278:2007 |

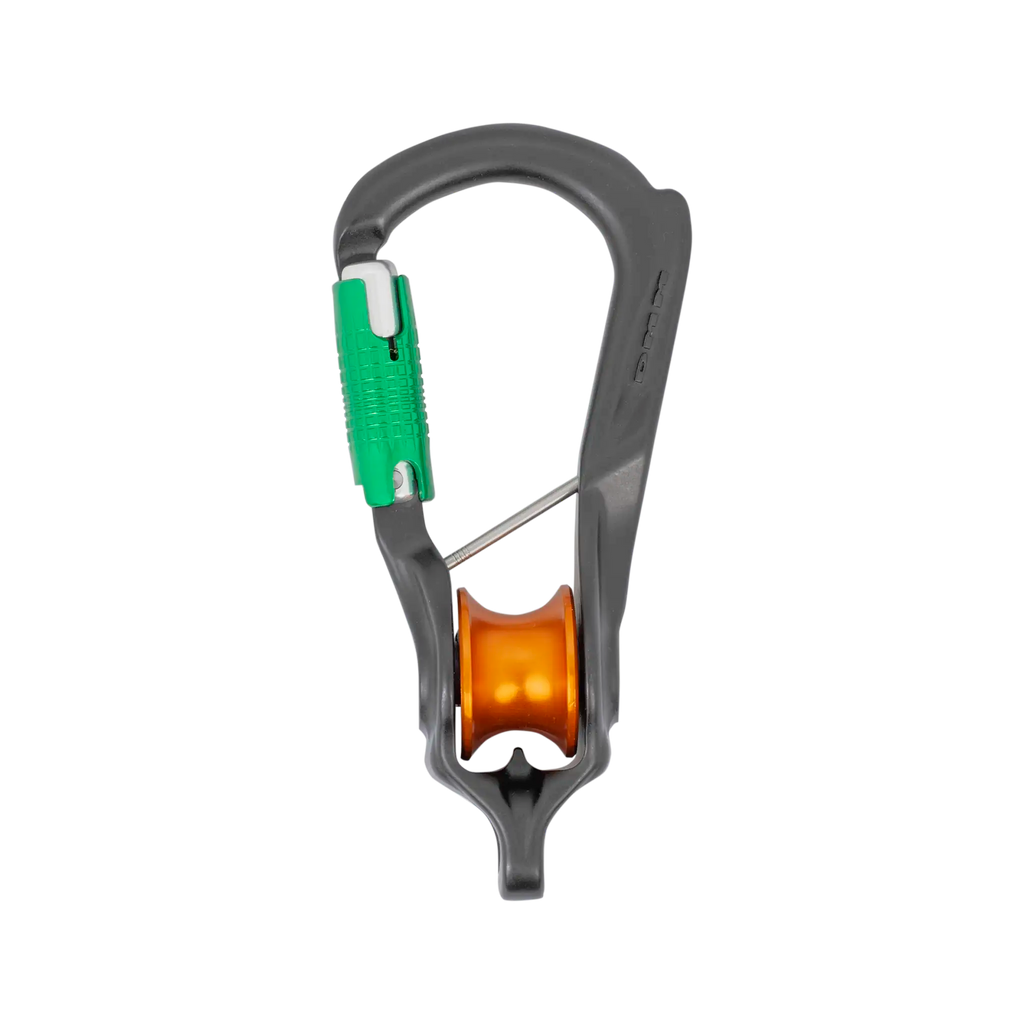

| Revolver Rig Locksafe | A5871CB | 75 x 161mm | 203g | 25kN | 5kN | 36mm | 22mm | EN362:2004 B/T EN12278:2007 |

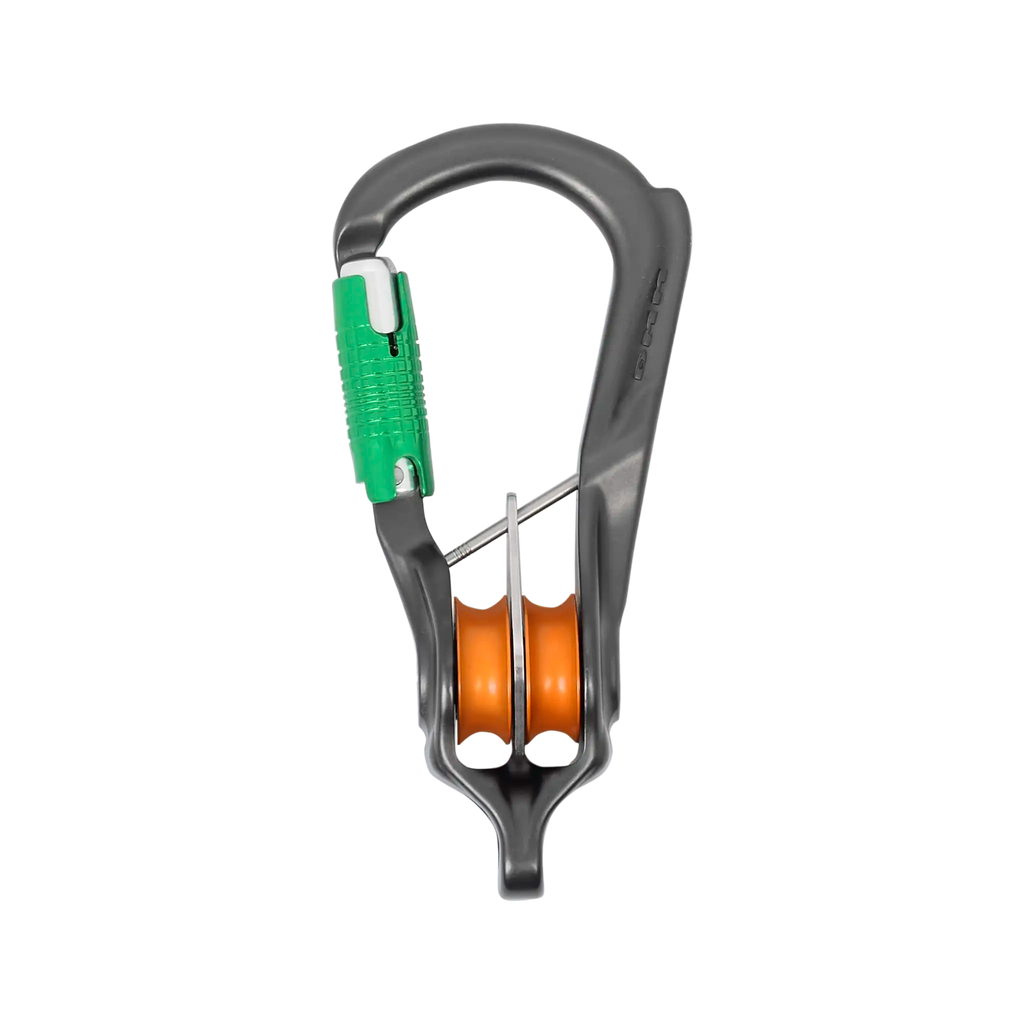

| Revolver Rig Locksafe Twin | A5872CB | 75 x 161mm | 219g | 25kN | 5kN | 31mm | 22mm | EN362:2004 T EN12278:2007 |
